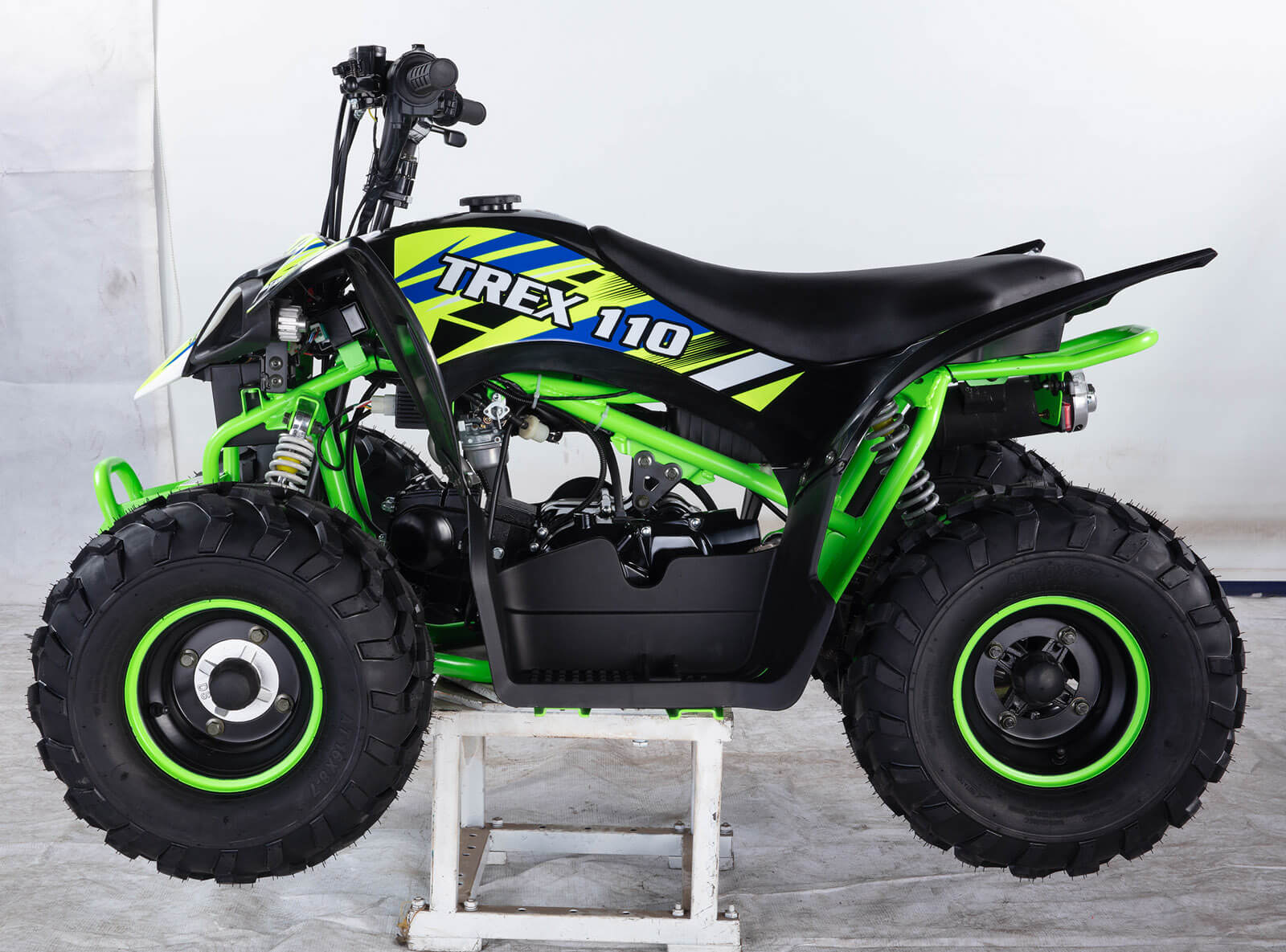

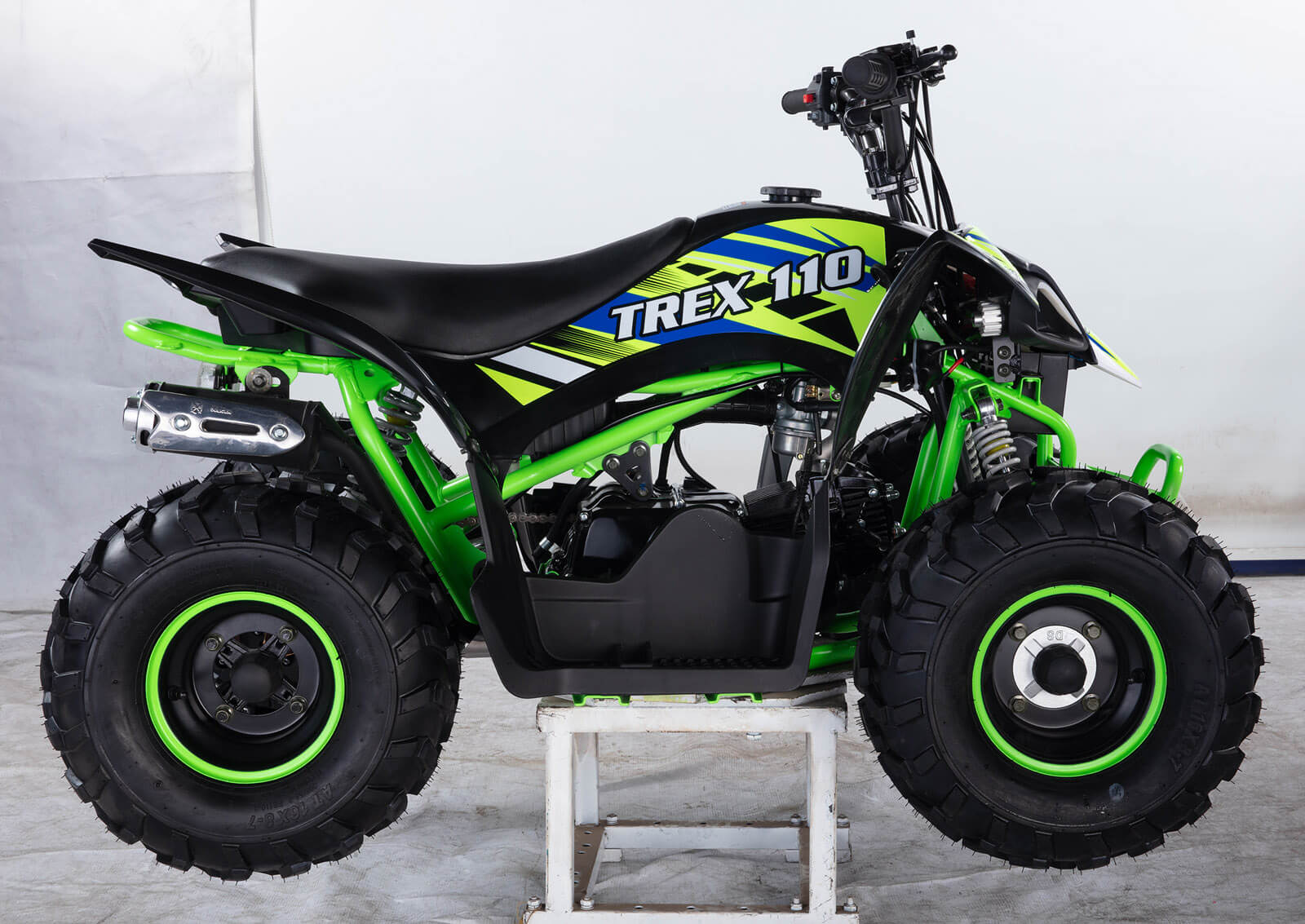

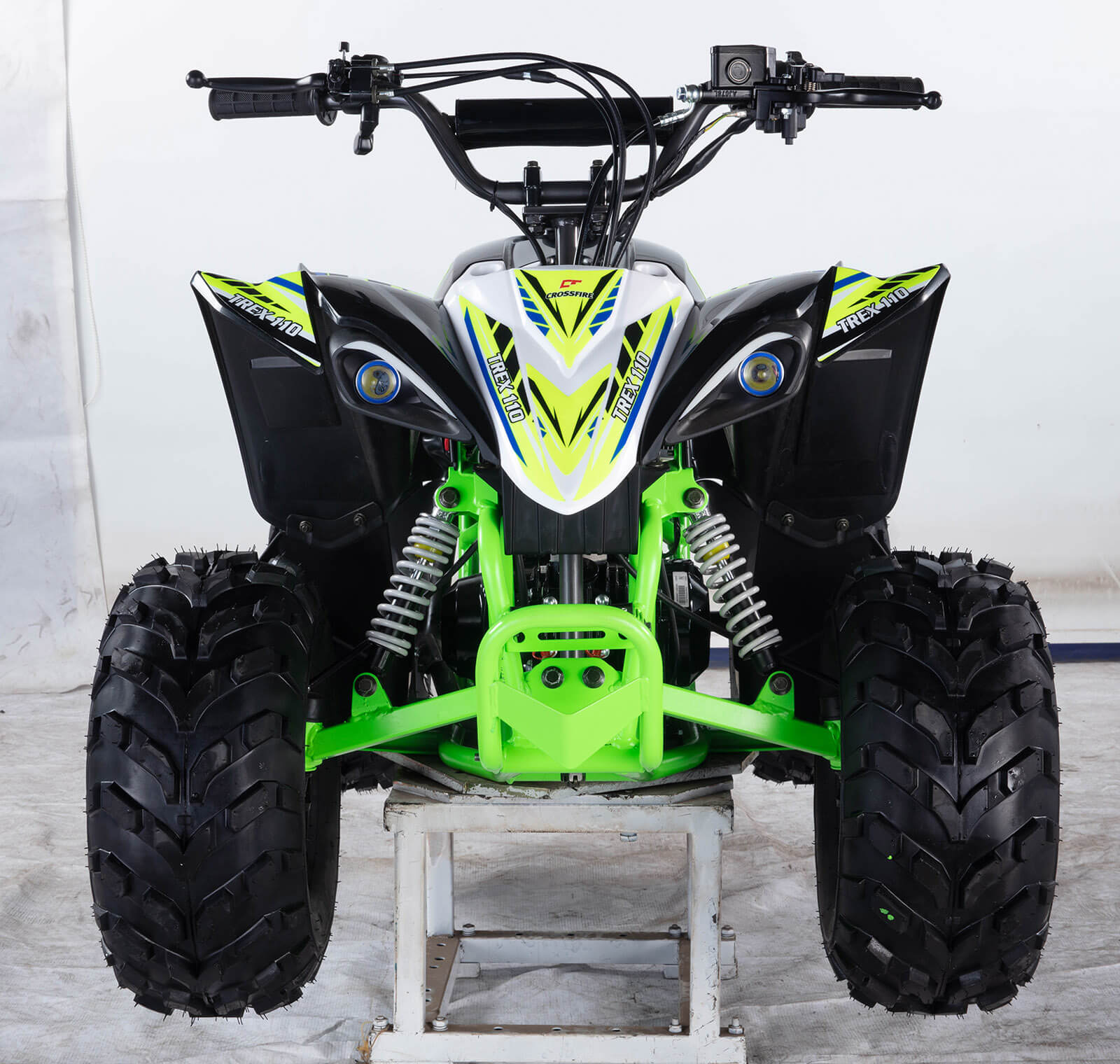

The Crossfire Trex 110 is our best looking quadbikes for riders aged 10 and up (depending on size and skill level). It comes standard with a throttle governor and both front and rear brakes.
Fully automatic transmission and electric start means this bike is easier to jump on and get going without the need for kick starting.
The Trex has fully enclosed foot wells so the rider stays drier and is more protected than having footpegs alone.
The memory foam seat is both plush and grippy for hours of riding comfort.
Trex 110 Included Features:
- 110cc 4-stroke
- Electric start
- Enclosed footboards
- 7” wheels
- LED lights
- Daytime running lights
- Air box
| Specifications | |
|---|---|
| Engine | 4-stroke SOHC |
| Displacement | 110cc |
| Power | 6.7 HP @7500rpm |
| Torque | 7.5 N.m @5500rpm |
| Drive | 2WD Chain |
| Cooling | Air |
| Carburettor | Plunger PZ19 |
| Starter | Electric |
| Ignition | CDI |
| Transmission | Automatic |
| Clutch | Wet multi-plate auto |
| Compression ratio | 9.1:1 |
| Bore x stroke | 52.4 x 49.5 mm |
| Fuel capacity | 5 L |
| Suspension front | Single rocker independent 185mm |
| Suspension rear | Single 260mm |
| Wheelbase | 850 mm |
| Brakes front | Drum |
| Brakes rear | Single Disc |
| Rims | 7″ steel |
| Tyres front | 16 x 8-7 |
| Tyres rear | 16 x 8-7 |
| Dimensions (L x W x H) | 1260 x 820 x 855 mm |
| Seat height | 620 mm |
| Ground clearance | 95 mm |
| Empty vehicle weight (EVW) | 90 kg |
| Max rider and cargo weight | 60 kg |
| Towing capacity | N/A |
| Winch | N/A |
| Cargo racks | N/A |
| Passenger backrest | N/A |
| Other | |
|---|---|
| Lubrication Mode | Pressure and Splash Mixed Lubrication |
| Lubrication Oil Brand | 15W/40-SE (-10-40 C) HQB-10 (<-10 C) |
| Warranty | |
|---|---|
| 6 months up to 12 months* | *If 1 month and 6 months services have been done by a Crossfire Dealer – warranty is extended to 12 months for vehicles up to 250cc. Please make sure you have proof of services. |
